iLanSUPEX Enterprise Intelligence System

PUCKAC’s iLANSUPEX Intelligent Cabling Solutions

The difference between PUCKAC’s iLANSUPEX intelligent cabling system and regular cabling system

The management over traditional cabling system only relies on manual operation to update management records. The variability of devices and connections has difficulty in reflecting in the management document in the first place, which easily causes the generation and accumulation of errors. The competent scale of cabling has put forward higher and higher requirements for the standardized cabling management. Traditional cabling management has not met the requirement of modern cabling. At the same time, due to more severe network safety issues, the appeal for listing in the cabling management is rising; intelligent cabling system is born under the background.

Its characteristics are:
Real-time-avoid the delay of management time
Logicality-avoid low management efficiency
Centrality-avoid excessive investment of human resources
Safety-real-time monitor the status of managed factors and inform to the administrator
The traditional cabling system is closely related to intelligent management through the intelligent cabling system. Network connection structures and the variability will automatically be transferred to systematic management software. The management system will process received real-time information. Users can know the newest change and structure of the cabling system via searching the management system. A direct, real-time, effective and paper management can be realized in the intelligent cabling system integrating management factors in the electronized management.

2. Realizable functions of PUCKAC’s iLANSUPEX intelligent cabling system

2.1 Real-time monitor the connection between connecting racks

Cross-linking mode is adopted for iLANSUPEX intelligent cabling system suggested by ANSI/TIA/EIA 568-B Communication Cabling Standards of Commercial Building, namely cables on the horizontal (vertical) side and cables on the side of network devices are separating connecting to different connecting racks. The management over the jumper is executed within the connecting rack on both sides.

Intelligent connecting racks and jumpers are applied in iLANSUPEX intelligent cabling system, each port has electrical information. An independent frame is increased on the port of traditional connecting rack to become a intelligent cable connecting rack for intelligent management, so does cable jumper, so the intelligent cable connecting rack and traditional cable connecting rack also can be commonly used, the same as the intelligent cable jumper and traditional cable jumper.

When the intelligent jumper inserts or extracts the port of the intelligent connecting rack, the connecting or disconnecting information and the electrical information of the port will be immediately reach to the management software via the management device, the administrator also can promptly know the variability of network connection and call the police.

In the mean time, when the connection is changing, the new network structure will be automatically recorded by the management software without no missing or delay, etc.

2.2 The execution of the control over work tasks

The another difference between iLANSUPEX intelligent connecting rack and traditional connecting rack is that each port on the iLANSUPEX intelligent connecting rack has a LED indicator light which provides an important basic for the execution of on-site operation, and the former substantially improves the accuracy and effectiveness of on-site operation as compared to the latter.

The administrator can deliver each necessary task (such as, the jumper, etc.) to each management device via the software, and then deliver to the connecting rack. When the operator arrives at the site, he only needs to carry out the operation according to the hint of LED to ensure its accuracy and save a large amount of time.

If the operator does not conduct well, the system will notify the LED to hint the operator, the administrator will receive the information through immediate software alarm; error probability of manual operation is, thus materially declined.

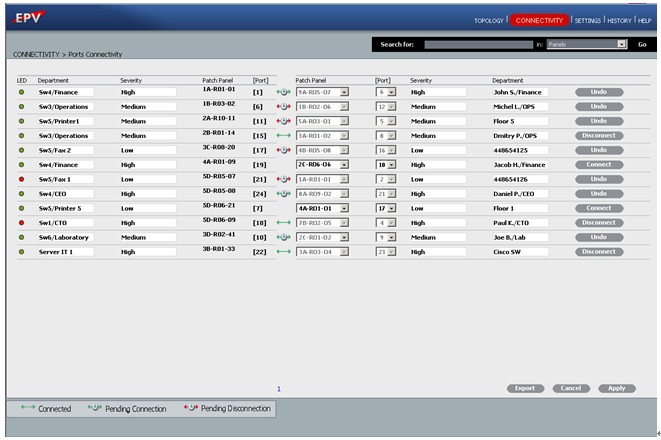

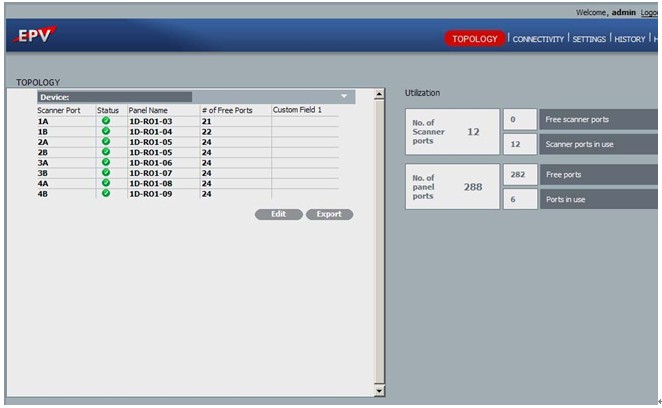

The management software of iLANSUPEX intelligent cabling system can directly demonstrate the connecting structure and number of physical layer. It will be real-time updated while the network connection is changing to avoid repeated investment of human resources in a rather effective way.

The administrator faces the management interface as the microcabling system and knows the details of any management factor via the software, which are not what the traditional cabling management can be done.

2.3 Search function

The management over the traditional cabling system requires reading a pack of documents when searching any information, which is time and energy-saving. If documents are not updated immediately, search results may be wrong. iLANSUPEX intelligent cabling system has a natural advantage on this aspect. As long as you input the device name, even some pre-defined characteristics in the search engine, search results can be seen at one. Due to real-time updated information in iLANSUPEX intelligent cabling system, the search precision can be ensured.

2.4 Reporting function

The reporting of the traditional cabling system needs plenty of documents in poor precision. But iLANSUPEX intelligent cabling system substantially improves the efficiency, research results and the data of asset management can be input as various types of reports via the software and according to different requirements.

2.4 Remote management

As long as you can log the network of the management hardware is located and win the permission of the administrator, anyone may manage cabling factors at any place, and the flexibility of cabling management is greatly improved.

3 iLANSUPEX intelligent copper-cable jumper

智能型，LED指示灯，具备智能管理接口

3.2 iLANSUPEX智能铜缆跳线

-Intelligent jumper with the management function, 9-core plug structure, in which 1-cor is especially for intelligent management.
- Aluminum foil shield of shielded jumper provides sound electromagnetic protection performance
-24AWG multistrand flexible line, compatible with T568A/B.
-The bandwidth is up to 350 MHz; ease support the transmission application of Gigabit network
-The length and color can be selected; antiskid plug sheath matching with the color of the cable is installed
-Sound electrical performance and continuous steadiness, ensure the transmission stability
-Transmission indicator exceeds TIA/EIA 568-B.2-1 Cat6 and ISO/IEC 11801-2002 Class E
-Unique outer-sheath design, protect plug hasp to ensure the plug’s service life and reliability
-100% pass the exfactory inspection

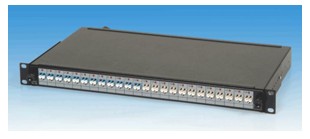

3.3 iLANSUPEX intelligent fiber connecting rack

• Type: LC, single-mode/multimode, box installation
• Intelligent, LED indicator light, have the port of intelligent management for direct future update and use in the intelligent cabling system

3.4 iLANSUPEX intelligent fiber connecting rack

• Type: LC, single-mode/multimode, box installation
• Intelligent, intelligent jumper for the management, fiber-plus-copper core structure is adopted; copper core is specially for intelligent management

3.7 PEI198 sub-analyzer of iLANSUPEX electrical connecting rack

-Connect the cable to the intelligent connecting rack via the scanner; monitor all ports on the connecting rack
-Connect to the core management unit via the upstream port
-Can connect 12-24 connecting racks

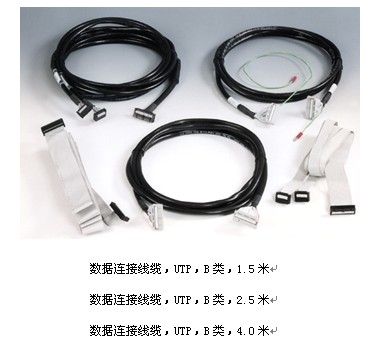

3.8 Connecting cables of the scanner in iLANSUPEX intelligent electrical distribution management system

• For the connection of intelligent CAT6 24-point connection rack:
26-frame port is connecting to each scanner via type B scanner; the scanner of 14-frame port on the connecting rack connects the cable and the connecting rack. The connecting cable of type B scanner connects a plug between two iLANSUPEX intelligent connecting racks and the scanner.

3.9 Control panel of iLANSUPEX intelligent electrical distribution management system

-Connect via the port of the control panel and iLANSUPEX scanner
-Know the operation of technical personnel on system disconnection and connection via the control panel
-For one of three functions of the control panel, the technical personnel know operation requirements according to LED on the connecting rack, and judge specific port operations according to the continuous status or flashing status of LED.

Three major functions of the control panel:
• LED scanning
A. Identify the port connection of the connecting rack matching with LED port
B. Check the correct status of cables from the scanner to the connecting rack and connecting cables of the scanner
C. Judge whether the port is connected according to the flashing status of LED.
• Pre-configuration
A. When the scanner sends the work order and connection task, pre-configuration LED on the control panel will start to flash, indicating the task is desired
B. The technician press two activated processes on the control plate
C. LED flashing again on the connecting rack means jump connection process
D. The flashing status of LED is automatically adjusted according to the correction and wrongness of the operation, until the technical finishes the work
•Manual scanning
The port on the connecting rack can be manually scanned via the control panel, and then is transferred another required port.

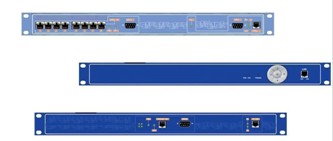

3.6 PEI188 major analyzer of iLANSUPEX electrical connecting rack

-Connect to iLANSUPEX sub-analyzer via the downsize port, monitor all ports on the connecting rack via the analyzer
-With the control panel to send/receive signals
-Adopt SNMP agent agreements
-Built-in management software without the installation, plug and play

3.5 Local host of iLANSUPEX electrical connecting rack

3.1 iLANSUPEX Intelligent Keystone copper-cable connecting rack
Intelligent, LED indicator light, have the port for intelligent management
